Measuring medium or Application

Liquid,gas or steam etc.

Operation mode

It can be measured liquid level and pressure.

Gauge pressure, absolute pressure, sealing pressure

Installation mode

1. Measuring pressure installation: water tank, pipe, other equipment at any position.
2. measure level installation: bottom or bottom side of water tank.

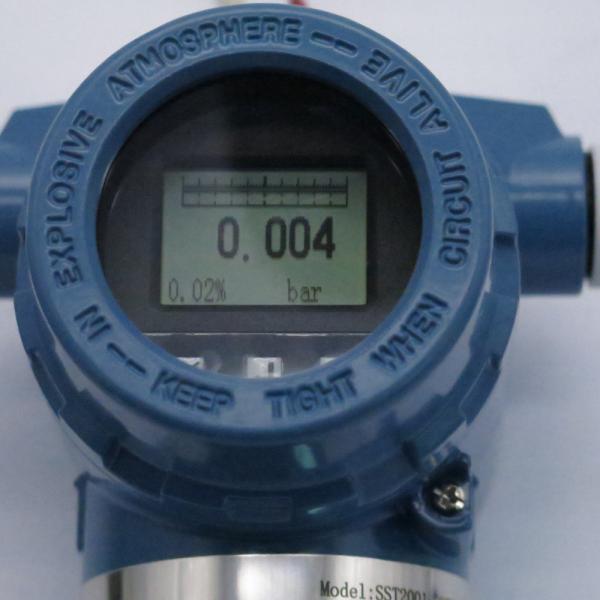

Display mode

Can be selected display type and without display type.

Range

0-1bar to 0-1000bar

Power supply

9VDC......36VDC,24VDC.

Accuracy

0.5%F.S

Output signal

4～20mA、1～5V、0～5V、1～10V、0～10Vetc.

Safe Overload

200%FS

Working Temp.

-25～80℃，-25～200 to 500℃ etc.high temperature can be customized

Environmental Temp.

-20～80℃

Diaphragm material

SUS316L Stainless steel

Shell material

All wetted parts are made of stainless steel and fully welded,Corrosion protection of aluminum shell

Process connection

Tri-Clamp、Threaded connection、Flange connection.

Protection grade

IP65

weight

0.65kg
