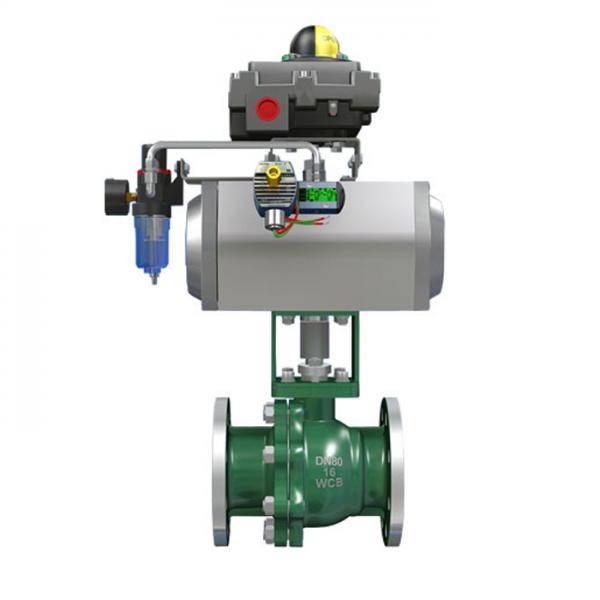

ZSHO Pneumatic O Type Cutting-Off Valve

With solenoid directional valve adopted, it can be used in chemical, petroleum, pharmaceutical, papermaking, metallurgy, water treatment pipelines and other industrial sectors. And also can be used in oil tankers or tank truck pipeline.

Detail

Main technical parameters

Body size（mm）	15	20	25	32	40	50	65	80	100	125	150	200
Rated flow coefficient Kv	19	38	72	110	170	270	450	510	940	1400	2200	3500
Nominal pressure	1.6/4.0/6.4/10.0MPa
Mandrel torque	900
Flow characteristic	Quick opening (on-off)
Body material	WCB（ZG230-450）WCC（ZG270-500）WC6（ZG15CrMo） CF8（304）CF8M（316）CF3（304L）CF3M（316L）
Other Parts material	mandrel：304,316,316L chrome plating；seat：PTFE
Temperature	Common type –40~1800C
Signal receiver Thread Operate pressure	M10x1/400~800KPa

BUYER GUIDE

Data:

Type of valve, Valve size, purpose

Body size, Nominal pressure

Working temperature

Fluid name, flux of medium, fluid state

Positive effect, Reaction

Material of Body and seat

Air-to-open or air-to-close

Accessory:

Flange standard,

Other especial demand
