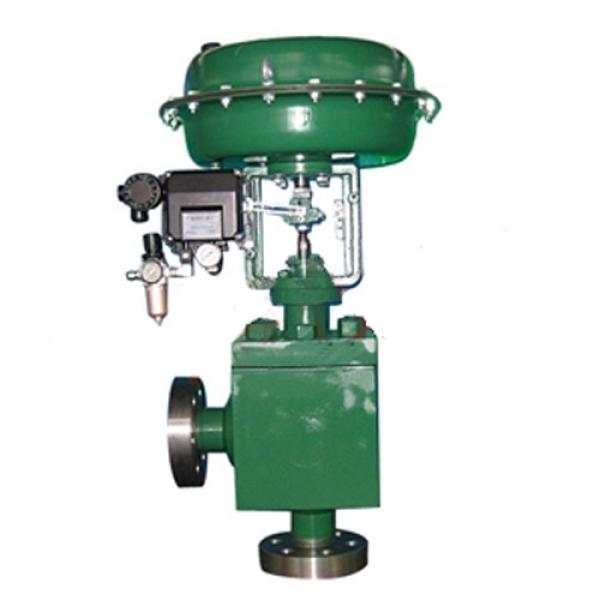

ZMAS ZMBS Pneumatic Diaphragm Angle(Single-stage、Multi-stage) Control Valve

ZMAS ZMBS Pneumatic Diaphragm Angle(Single-stage、Multi-stage) Control Valve is equipped with pneumatic Actuator。 It is widely used to control the pressure and flux of liquid medium (including gases, liquid, steam and other media). Its body is adopted high-temperature and high pressure of the shell material. What is more, many ports in the body are fire-resistant, anticorrosion. It can minimize noise by Single-stage (Multi-stage) Control. It also has the advantages of compact structure, lightweight, low noise, large allowable pressure differential, easy disassembly and so on.

Detail

Main technical parameters

Body size (mm)	Single-stage	15，20，25，32，40，50，65，80，100，125
Body size (mm)	Multi-stage	15，20，25，32，40，50，65，80
Nominal pressure MPa	16.0 22.0（25.0） 32.0（JB2766-92）42.0
Nominal pressure（Lb）	CLASS 600 900 1500 2500
Working temperature℃	-40—550
Flow characteristic	liner，percentage
Connection type	welded type：（ JB2769-92 screwed flange） flange-type：According to customer’ need
Bonnet type	Normal temperature type （-40—250℃）	Heat radiating type（250—550℃）
Seat leakage GB/T4213-92	Single-stage	Class Ⅵ(single seat) class Ⅳ(cage type)
Seat leakage GB/T4213-92	Multi-stage	Class Ⅳ
air supply of Actuator（MPa）	Air-to-open	0.25 0.30
air supply of Actuator（MPa）	Air-to-close	0.14 0.25 0.30

BUYER GUIDE

Data:

Type of valve, Valve size, Purpose

Body size, Nominal pressure

Working temperature

Input pressure, outlet pressure

Fluid name, Flux of medium, Fluid state

Bonnet type,

Flange connection type

Flange standard, Flange interval

Air supply, Air-to-open or air-to-close

Material of Body and seat

Accessory:

Pneumatic retaining, Positioner, Limit switches, Solenoid valve, Redactor, Handwheel,

Other especial demands

Other
