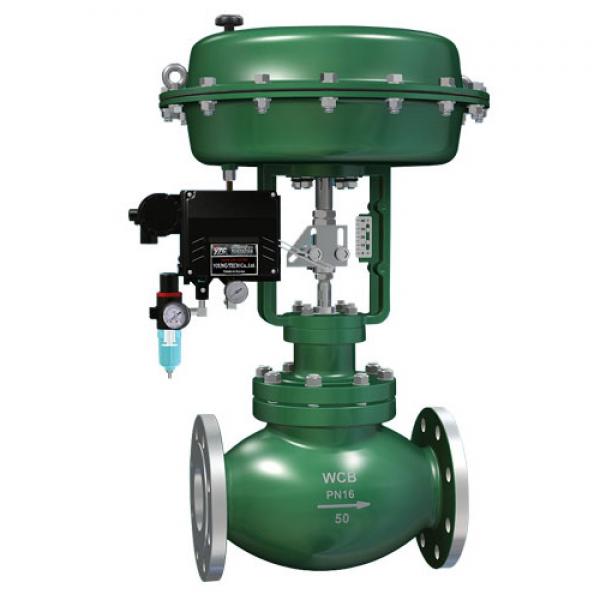

ZXP Pneumatic Diaphragm Single Seat Control Valve

With a top-guiding structure adopted and equipped with a multi-spring actuator,ZXP Pneumatic Diaphragm Single Seat Control Valve has the advantages of compact structure, light weight, motion-sensitive, streamlined channel, little loss of pressure decreasing, bulky, accurate flow characteristics, easy disassembly and so on. This product is used to regulate and control the pressure, flow and liquid level of gas, fluid, or steam media, and is particularly applied for occasions where the pressure drop is small and the medium is quite clean.

Detail

Main technical parameters

Body size DN(mm)		20										25							32		40			50
Ports size (mm)		10	12				15			20		10	12	15		20		25	32		32	40		32		40	50
Rated flow coefficient(KV)	liner	1.8	2.8				4.4			6.9		1.8	2.8	4.4		6.9		11	17.6		17.6	27.5		17.6		27.5	44
	percentage	1.6	2.5				4.0			6.3		1.6	2.5	4.0		6.3		10	16		16	25		16		25	40
Rated travel		16																	25
Diaphragm area (cm2)		280																	400
Body size DN(mm)		65		80					100						125		150			200					250
Ports size (mm)		65		65		80			65		80		100		125		125		150	150			200		250
Rated flow coefficient (KV)	liner	69		69		110			69		110		176		275		275		440	440			690		1100
	percentage	63		63		100			63		100		160		250		250		400	400			630		900
Rated travel		40													60										100
Diaphragm area (cm2)		600													1000										1600
Nominal pressure PN		Mpa			1.6, 2.5, 4.0,6.4(6.3) /2.0, 5.0, 11.0
		Bar			16, 25, 40, 64(63)/20, 50, 110
		Lb			ANSI: Class150、Class300、Class600
Flow characteristic		Percentage、liner
Rangeability(R)		50
Spring range (KPa)		20～100、40～200、80～240、(20～60、60～100)
Air supply (MPa)		0.14/0.25/0.3
Seat leakage		IV , VI
Working temperature(0C)		Normal temperature type						-20～200、-40～250、-60～250
		Heat radiating type			mark：S			-40～350、-60～350
		high temperature type			mark：G			350～550
		low temperature type			mark：D			DO:-60～-100、D1:-100～-200、D2:-200～-250
		Regulator /cutting-off type			mark：Q			-40~150

BUYER GUIDE

Data:

Type of valve, Valve size, purpose

Body size, Nominal pressure

Working temperature

Input pressure, outlet pressure

Fluid name, flux of medium, fluid state

Bonnet type,

Air supply, air-to-open or air-to-close

Material of Body and seat

Accessory:

Pneumatic retaining, Positioner, limit switches, solenoid valve, redactor, Handwheel, flange

Standard,

Flange interval

Other especial demand
