VM-C Concrete Moisture Meter adopted the high frequency principle based on the introduction of the most advanced technology from US. In other words, there is a fixed frequency inside the equipment. Once the moisture of the detected objects carried, the frequency through the sensor will be different. The deference between the frequencies will be displayed in figure after the conversion by current-frequency converter.
Product features:
1.VM-C Concrete Moisture Meter,adopted the high-frequency principle, LCD back light digital display, the densor and the host all in one.
2.VM-C Concrete Moisture Meter,easy Operation and no need use training,when measures the textile materials only gently press the instrument sensor above it.
3.Short test time,high efficiency and undamaged.
4.VM-C Concrete Moisture Meter, small size, light weight, portable on-site rapid testing,VM-P is a good helper for testing personnel to detect the moisture content on-site.

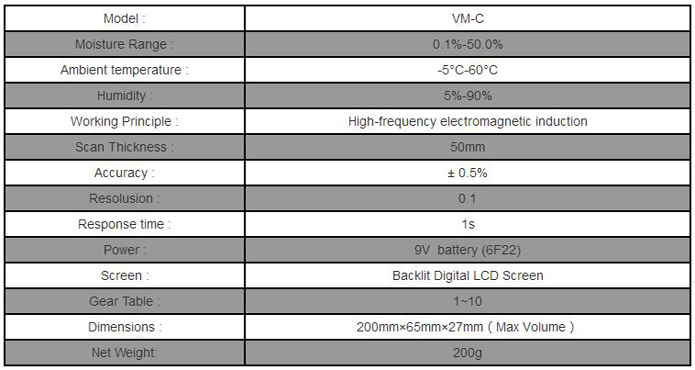

Technical details:
Application:
VM-C is widely used in various types of rapid determination of Paint wall paint, flooring installation, floor construction, construction, maintenance drain room, chimney cleaning, indoor and outdoor decoration and other industries need rapid determination of moisture, such as marble, stone plates, marble, cement board, wall body, Firewood, walls, floors, tiles, marble, gypsum board, concrete, mud, ceramics and other rapid determination of moisture.
Notice:
1. When measuring, holding the lower part of the instrument, the body of the instrument and the object to be measured kept parallel,Let the instrument's three sensing probe gently pressed in the surface of the object to be measured.
2. Due to high frequency has a strong penetration,So when measuring If the surrounding metal can cause inaccurate measurement.And Please Let the Sensor away from metal material.
3. All of the three sensing probe must be touched with the object to be measured when testing.
4. When the display can not adjust within ±00.5,Please replace a new battery.If the problem isn't the power,Please turn open the battery cover, find the tail of zero knob, with a flat screwdriver to open a small hole in the potentiometer, the instrument zero in less than 00.5.
Operation steps:
①Ensure the Testing object thickness Over 50mm.
②Holding the lower part of the instrument, the instrument housing is substantially parallel to the object to be measured
③Gently press the instrument sensor above the object to be measured.
Then instrument will Show The Moisture Date.
