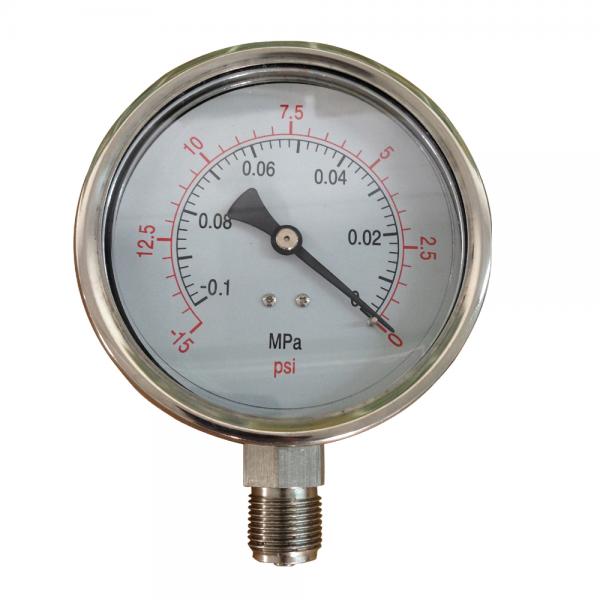

Model:YTF-60/100/150
We can provide OEM service
E-mail: pearls@judongkj.cn
Product description：
Pressure gauge through the table of sensitive components (Borden tube, membrane box, bellows) of the elastic deformation, and then by the movement of the table movement of the body to thepressure deformation to the pointer, causing the pointer to show the pressure of rotation.
Product features:
Instrument by the pressure system (including joints, spring tube, etc.), transmission, indicating device and shell composition.
When the measured medium acts on the spring tube, the tube end of the corresponding elastic deformation - displacement, the drive by the amplifier, by the indicating device on the dial to indicate the measured pressure out.
Technical details:
|
Dial |
2.5"(63mm), 4"(100mm),6"(150mm) |
|
Range |
-0.1~1.6Mpa |
|
Shell |
SUS304 or SUS316L |
|
Window |
Polycarbonate |
|
Connection |
1/4" NPT,G1/2，M20*1.5，M14*1，etc. |
|
Internal |
Stainless Steel |
|
Installation direction |
Axial or Radial |
|
Pointer |
Aluminum,Black |
| Accuracy |
2.5"(63mm) 2.5%,4"(100mm)6"(150mm)1.6% |
|
Ambient temperature |
-20~120℃ |
Pressure gauges are mainly used in metallurgy, power, oil, chemical, light industry, machinery and other industrial sectors of pressure detection. Pressure gauges rely on internal filling, damping oil, and matching buffer devices. It has good seismic performance. Applicable to the pressure of the medium under test, where there is a strong pulse change or pressure shock, and a sudden unloading in the production process, as well as a place with large environmental vibration.
The stainless steel pressure gauges are made of stainless steel and can be used in corrosive environments.
