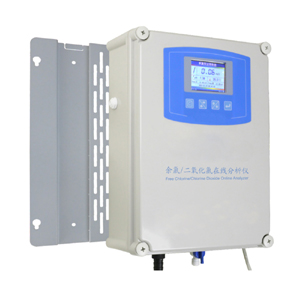

Online Residual Chlorine Analyzer

Model:POP-8300A

We can provide OEM service

E-mail: pearls@judongkj.cn

Product description：

POP-8300A Integrated Free Chlorine /CLO 2 /pH Online Analyzer comes together intelligent control meter, Free Chlorine/CLO 2 sensor, pH sensor, Temp probe and matching constant flow device and other relative accessories,with tight structure, easy transportation and installation and free of maintenance features.

Download:Online Residual Chlorine Analyzer Data

Detail

Product features

1.Wall mounted integrated Free Chlorine/CLO 2 online analysis system integration;
2.Embedded free chlorine, chlorine dioxide analysis software of two mathematical models;
3.3.5"LCD color display,bilingual Chinese/English ,complete operation guided ;
4.Constant flow rate control with the patents, make sure the measurement accuracy,do not changed by
the the pipeline pressure ;
5.Anti-siphon design, the system automatically in the conservation of the state after the shutdown;
6.Double channels isolated (4～20)mA，Instrument / Transmitter for selection;
7.High / low limit setting relay*2，Photoelectric programmable*1， switching / pulse regulating state；
10.Protective plastic chassis, preset back cover, the independent panel.

Technical details

Sensor	Free Chlorine/pH/Temperature
Measurement range	Free Chlorine:(0.10~2.00)mg/L(ppm);(0.10~20.00)mg/L(ppm) pH:2.00~12.00(for the Free Chlorine) Temp:(0.0~99.9)℃(Temp. Compensation Pt1000)
Resolution	Free Chlorine:0.01mg/L pH:0.01 Temp:0.1℃
Accuracy	Free Chlorine:90% confidence interval ±10％FS pH:0.1level Temp :±0.5℃
output signal	4-20mA
Power supply	System AC 220V /50Hz, indicator DC24V.
Communication port	RS485 MODBUS RTU RS485
Output signal	4～20mA、1～5V、0～5V、1～10V、0～10Vetc.
Safe Overload	200%FS
Working Temp.	temperature：(0~50 )℃；humidity：≤85% RH（none condensation）
Environmental Temp.	20～80℃
Storage	Temperature：（0~60）℃; humidity：≤85%RH（none condensation）
Protection	IP54（plastic protection cabinet, integration system）
Cabinet	ABS
Cabinet size	380mm×280mm×130mm（HWD）
installation	Wall mounted(with the preset back cover)
Cabinet	≤10kg

Application

Widely used for online monitoring HCIO/CLO2 free chlorine in residential&drinking water or food industries.It is designed for constructing swimming pool ,Spa online analysis and the sewage and

waste-water disinfection and drug Dosing control .

Selection considerations

Provided to be some technical details:

1. measuring range

2. measurement medium (liquid specific name)

3. output signal

4. maximum temperature
