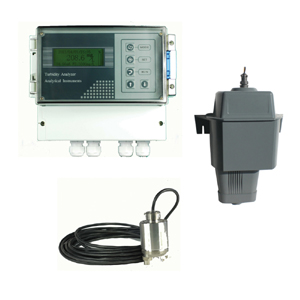

Model:JDZ-4000
We can provide OEM service
E-mail: pearls@judongkj.cn
Product description：
Turbidity meter means the degree that suspended solids in water impede the light through the water. The water contains dirt, dust, fine organic matter and microorganisms and colloidal substances in water can showing turbidity. Transmitter sends light waves in the transmission process of analyte absorption, reflection and scattering on the sensor, part of the transmitted light can be irradiated to the detector in the direction of 180 °, and some scattered to the detector in the direction of 90°. The received light intensity measured in the direction of 180 ° and 90 ° detector effluent turbidity relationship can be calculated by measuring the intensity of the transmitted and scattered light turbidity of the sewage.
Download:Online analytical meter Data
Introduction
Turbidity meter means the degree that suspended solids in water impede the light through the water. The water contains dirt, dust, fine organic matter and microorganisms and colloidal substances in water can showing turbidity. Transmitter sends light waves in the transmission process of analyte absorption, reflection and scattering on the sensor, part of the transmitted light can be irradiated to the detector in the direction of 180 °, and some scattered to the detector in the direction of 90°. The received light intensity measured in the direction of 180 ° and 90 ° detector effluent turbidity relationship can be calculated by measuring the intensity of the transmitted and scattered light turbidity of the sewage.
Product Features
1.Built-in bubble Elimination System (flow-through), to improve measurement accuracy and stability;
2.Cleaning and maintenance is very easy, calibrated every three months;
3.Good reproducibility from sample flow rate and pressure (input type); Using the two point calibration method;
4.NTU, mg / L, two units of measurement form is optional.
Major SpecificationsTransmitter:
Measuring Range：Activated sludge, 0 ~30g/L Silica，0~100 g/L
Display：LCD
Units of Measurement：g/L and mg/L (Optional)
Resolution：0.01%
Accuracy：±1.0%FS
Repeatability：±1.0%
Power： ≤15 W
Analog Output：4~20mA、load 750Ω
Switch Output：2 relays、capacity 220VAC/2A
Power Supply：AC220V±10%
Sensor :
Material：ABS
Cable:shielded cable
Installation:Flow-through
Dimensions:Φ280×375mm
Signal Cable:10M（standard configuration）Can be extended
Degree of Protection:IP65
Operating Temperature：Sensor 0~50℃
Sensor(input type)
Material:316 stainless steel
Application
Waterworks: reservoirs, wells, clean water tank, filter, sediment and the water treatment plant turbidity monitoring.
Industrial processes: the production of water recycling, recycled water and water quality monitoring.
Sewage treatment: imported water, drain water quality monitoring.
Selection considerations
3. output signal
4.Maximum temperature
