Introduction

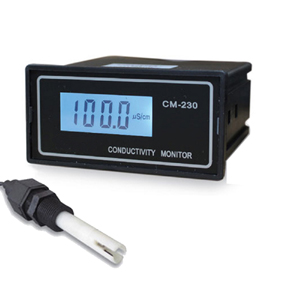

Conductivity monitor CM-230 , measurement and temperature compensation via MCU.  With easy operation and complete function, it is widely used in reverse osmosis to desalinate seawater and electronic micro filter.

Features

1.Automatically reversible measurement range

2.Automatically adjustment to zero

3. Simultaneous viewing of conductivity and temperature values

4. Input electrode coefficient on the panel

Major Specifications

1.Measurement range: 0-1999µS/cm

2.Automatically reversible measurement range: 0-19.99µS/cm, 0-199.9µS/cm 0-1999µS/cm；

3.Temperature compensation: automatic temperature compensation, compensation range 0-60℃, compensation point 25℃, compensation coefficient 2.0%/℃;

4.Display: 3.5 digits 0.56’’ Backlight LCD for conductivity display

5.Accuracy:  ± 2% (F·S)

6.Electrode:  1.00cm^-1 plastic platinum holder, 4’ tube connected by screw, cable length 5m

7.Power supply: 220 VAC ± 10%, 50Hz

8.Dimensions: frame dimension: 96×48 (mm), panel dimension: 91×45 (mm), depth: 100 (mm)

9.Testing standard: JB/T6855

Application

Acids, bases, salts, solutions, tap water, sewage, corrosive liquids, slurries, slurries, etc.

Selection considerations

3. output signal

4.Maximum temperature
