Introduction

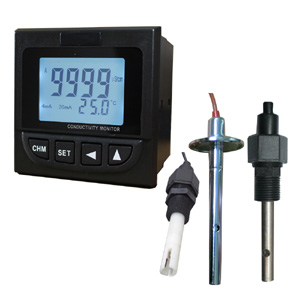

Conductivity monitor DDG-403B provides advanced measurement and temperature compensation via MCU, with large LCD display. It is widely used in electronics, chemistry, pharmaceutical, mechanical and electrical, nuclear energy and water etc industry.

Features

1.Automatically reversible measurement range

2.Automatically adjustment to zero

3.TDS (ppm) display

4.Simultaneous viewing of conductivity and temperature values

5.Alarm output according to maximum conductivity and TDS value

6.Data output via the interface RS-232C

7.220 VAC or 24 VDC powered

Major Specifications

1.Measurement range: automatic measurement range at 0-20.00µS/cm, 200.0µS/cm, 0.5-2000µS/cm,

0-1000ppm can be displayed.

2.Temperature compensation: automatic temperature compensation, compensation range 0-60℃,

compensation point 25℃, compensation component NTC10KΩ

3.Display: 58×42 large LCD screen, 4 digits 0.56’’ for conductivity display, 3 digits 0.36’’ for temperature

display

4.Accuracy:  ≤±2% (F·S)

5.Electrode:  1.00cm-1 plastic platinum holder, 4’ pipe-thread, cable length 5m

6.Alarm output: available alarm setting for conductivity or TDS.  When the measurement reading exceed

the setting value, a relay will be functioned.

7.Current Output: DC 4-20mA output, optional according to user’s requirement

8.RS-232C interface: available RS-232C access to devices complied with the interface such as computers,

printers (DY-301B) to print out measurement data.

9.Real time clock: real time clock function supports the continuously changing printing time to be recorded.

10.Power supply: 220 VAC or 24 VDC, to be confirmed by customers when replace orders

11.Dimensions: frame dimension: 96×96 (mm), panel dimension: 91×91 (mm), depth: 95 (mm)

12.Testing standard: Q/TCDP03-2000

Application

Acids, bases, salts, solutions, tap water, sewage, corrosive liquids, slurries, slurries, etc.

Selection considerations

3. output signal

4.Maximum temperature
