Model:PH-A
We can provide OEM service
E-mail: pearls@judongkj.cn
Product description：
Online PH meter is a kind of commonly used equipment, mainly used for precision measurement of liquid medium pH value, with corresponding ion selective electrode can also measure ion electrode potential value of MV, pH has been widely used in environmental protection, sewage treatment, scientific research, pharmaceutical, fermentation, chemical industry, aquaculture, tap water and other fields.
Download:Online PH meter Data
Introduction

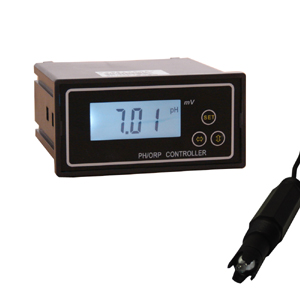

PH/ORP -A, with MCU technology and 3 1/2 digital LCD, is widely applied for online monitoring in electronics, chemistry, environment protection, pharmaceutical and food industries.
Major Specifications1. Measuring range: 0.00 to 14.00 PH, resolution 0.01 PH
2. Potential: -1999 to +1999mV, resolution 0.1mV
3. Operating Temperature: 0 to 99.9℃, resolution 0.1℃
4. Accuracy: ±0.05 PH
5. Temperature compensation: automatic temperature compensation,
6. compensation range 0 to 99.9℃, compensation point 25℃,
7. compensation component NTC10KΩ
8. 3 1/2 character type LCD with backlight
9.PH compound electrode, 6’ pipe-threading connect, cable length 5m, Pmax=0.6MPa
10.Maximum and minimum PH value for alarming, contact rating 220VAC/3A
11.Power supply: 220 VAC±10%, 50Hz
12.Environment temperature: 0 to 50.0℃
13.Relative Humidity: ≦85%
14.Frame dimension: 96×48 (mm) Panel dimension: 91×45 (mm) Depth: 100 (mm)
15.Testing standard: JB/T6203
Application
It is widely applied for online monitoring in electronics, chemistry,environment protection, pharmaceutical and food industries.
Selection considerations
3. output signal
4.Maximum temperature
