Model:CP/
We can provide OEM service
E-mail: pearls@judongkj.cn
Product description：

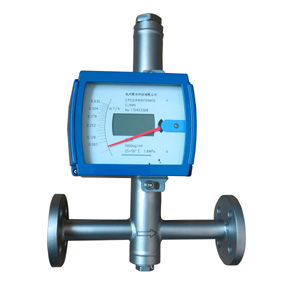

The metal variable area flow meter is a kind of variable area flow measuring meter, It has the characteristics of small size, large detection range and convenient to use. It can be used for detecting the flow rate of various liquids and gases, and is especially suitable for measuring the medium flow of a low flow rate and a small flow rate.
It is consists of a measuring tube, a float, and an indicator. The float moves up and down freely in the measuring tube, changing the flow area in the pipe. With the change of the size of the flow, the vertical position of the float in the measuring tube is changed, the float position accurately delivered to the dial indicator on the magnetic transmission system, indicating the changes of flow rate.
Download:Metal Variable Area Flow Meter Data
Product features
1.It can be measured: hot water, purified water, water for injection, vegetable oil,milk , Compressed air, steam etc.
2.Dual-line display, instantaneous/ cumulative flow rates displayed at the field
3.With function of data recovery, data backup and power failure protection
4.Multiple parameters calibrating function
Technical details
|
Application |
hot water, purified water, water for injection, vegetable oil,milk , Compressed air, steam etc. |
|
Measuring range |
Water(20℃)1-200000 l ／h |
|
Accuracy class |
1.5 special 1.0 |
|
Pressure Rating |
DN15-DN50≤4.0MPa DN80-DN200≤1.6MPa(common) DN15-DN50≤32MPa DN80-DN200≤16MPa(special) |
| Pressure loss |
7kPa~70kPa |
|
Temp of measured medium |
-40~+100℃:PTFE:0℃~100℃ High temp:110℃-450℃ |
|
Accuracy |
0.5%F.S |
|
Visocsity |
DN15:η<5mPa.s(F15.1-F15.3) η<30mPa.s(F15.4-F15.8) DN25:η<250mPa.s DN50-DN150:η<300mPa.s |
|
Power Supply |
a.4~20mA 24VDC(12VDC-32VDC) 2wires system b.Alarm Type: 4~20mA 24VDC(18VDC-28VDC) 4wires system c.85~265VAC 50Hz d.battery:3.6V@7.5AH (lithium) |
|
Alarm Output |
a.H&L Alarm b.Switch value (1A@30VDC) c.Relay output ( 1A at 30VDC or 0.25A at 250VAC or 0.5A at 125VAC ) |
|
Environmental Temp. |
20～80℃ |
|
Protection |
IP65 |
|
Process connection |
Tri-Clamp、Threaded connection、Flange connection. |
Application
Selection considerations
3. output signal
4.nominal diameter
