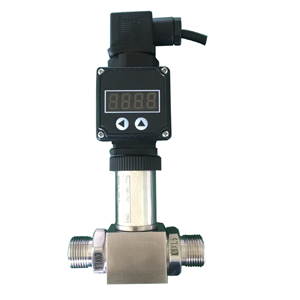

Micro differential pressure transmitter

Model:JDYD
We can provide OEM service
E-mail: pearls@judongkj.cn

Product description：

Micro differential pressure transmitter with high accuracy and high stability, double isolation metal diaphragm sensitive chip, chip sensitive stability of double isolation metal diaphragm, the strict temperature compensation and signal amplification, V/I conversion precision, the conversion parameters of pressure difference, flow rate and reliable industrial standard 4-20mA signal output. It can be connected with industrial instrument to realize accurate measurement of pressure difference and liquid level flow in corrosive medium.

Download:JDYD Micro Pressure Transmitter Data

Detail

Product features

1.Minimum measuring range -1bar.

2.Maximum measuring range 0-1000bar.

3.Signal output to PLC program

4.Lightning protection and protection radio frequency interference

5.Small size, beautiful appearance, high cost performance

6.High precision, high stability, high reliability

Technical details

Measuring medium or Application	Liquid,gas or steam etc.
Installation mode	1. Measuring pressure installation: water tank, pipe, other equipment at any position.
Display mode	Can be selected display type and without display type.
Range	-100pa-0-1bar to 0-4000bar
Power supply	24VDC
Accuracy	0.25%F.S
Output signal	4～20mA,0-5V,1-10V,1-5V protocol
Working Temp.	-25～80℃ high temperature can be customized
Environmental Temp.	-20～80℃
Diaphragm material	316L SUS
Process connection	Threaded connection
Protection grade	IP65
weight	0.25kg

Application

Application：Can be widely used in petroleum, chemical, steel, electricity, light industry, environmental protection and other industrial fields, realize the measurement of the pressure, differential pressure, flow and level of industrial process, can be applied to a variety of harsh and dangerous environment and corrosive medium.

Selection considerations

Provided to be some technical details:

1. measuring range

2. measurement medium (liquid and gas specific name)

3. output signal

4. maximum temperature

5. Process connection
