Model:JDYT-02
We can provide OEM service
E-mail: pearls@judongkj.cn
Product description：

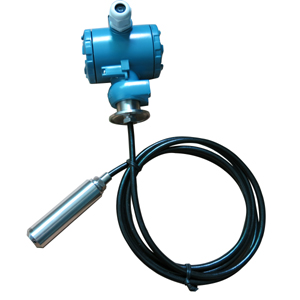

Submerged level meter consists of a special guide cable with a built-in capillary hose, an anti compression joint and a probe. The probe is constructed of a stainless steel cylinder with a diaphragm at the bottom and covered with a stainless steel case with a hole. Liquid level measurement is actually the liquid hydrostatic pressure in the measuring probe and the actual atmospheric pressure difference, and then by the ceramic sensor (attached to the stainless steel film) and electronic components of the differential pressure into 4 ~ 20mA output signal.
Download:JDYT Submerged Level Meter Data
Product features
1.Minimum measuring range 0-1m.
2.Maximum measuring range 0-1000m.
3.waterproof wire or Stainless steel wire.
4.Lightning protection and protection radio frequency interference
5.Intrinsically safe explosion-proof or flameproof
6.Small size, beautiful appearance, high cost performance
7.High precision, high stability, high reliability
Technical details
|
Measuring medium |
water, sewage, tap water, etc. |
|
Measuring range |
0~1mH2O.. 1000mH2O Optional |
| Safe Overload | 200%F.S(standard) |
|
Output signal |
4-20mA ,0-5V,0-10V, 1-5V,etc. (Can be customized) |
|
Accuracy |
±0.5%F.S,±0.25%F.S(Standard condition) |
|
Power Supply |
12-36Vdc,24Vdc(Two-wire and four wire ) |
|
Environmental Temp. |
-20℃~60℃ |
|
Working Temp. |
--20℃~80℃or 300 ℃ (Can be customized) |
|
Sensor material |
Waterproof cable,SUS316L , 304 Stainless Steel |
|
Connect Port |
M30*1.5 male, M35*1.5 cmale,Tri-Clamp, (by customized) |
|
Protection grade |
IP68 |
|
Pressure |
atmospheric pressure |
|
Electrical connection |
M20 x 1.5 (two units) |
Application
Selection considerations
