Submerged Level Meter
Now:Home»Products»Submerged Level Meter

Submerged Level Meter

Model:JDYT

We can provide OEM service

E-mail: pearls@judongkj.cn

Product description:

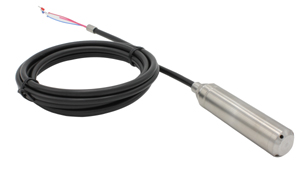

Submerged level meter consists of a special guide cable with a built-in capillary hose, an anti compression joint and a probe. The probe is constructed of a stainless steel cylinder with a diaphragm at the bottom and covered with a stainless steel case with a hole. Liquid level measurement is actually the liquid hydrostatic pressure in the measuring probe and the actual atmospheric pressure difference, and then by the ceramic sensor (attached to the stainless steel film) and electronic components of the differential pressure into 4 ~ 20mA output signal.

Download:JDYT Submerged Level Meter Data

Detail


Product features

1.Minimum measuring range 0-1m.
2.Maximum measuring range 0-1000m.
3.waterproof wire or Stainless steel wire.
4.Lightning protection and protection radio frequency interference
5.Intrinsically safe explosion-proof or flameproof
6.Small size, beautiful appearance, high cost performance
7.High precision, high stability, high reliability

Technical details

Measuring medium
water, sewage, tap water, etc.
Measuring range
0~1mH2O.. 1000mH2O Optional
Safe Overload 200%F.S(standard)
Output signal
4-20mA ,0-5V,0-10V, 1-5V,etc. (Can be customized)
Accuracy
±0.5%F.S,±0.25%F.S(Standard condition)
Power Supply
12-36Vdc,24Vdc(Two-wire and four wire )
Environmental Temp.
-20℃~60℃
Working Temp.
--20℃~80℃or 300 ℃ (Can be customized)
Sensor material
Waterproof cable,SUS316L , 304 Stainless Steel
Connect Port
M30*1.5 male, M35*1.5 cmale,Tri-Clamp, (by customized)
Protection grade
IP68

Pressure

atmospheric pressure

Electrical connection

M20 x 1.5 (two units)

Application

Application: urban water supply and drainage, sewage treatment, groundwater, reservoirs, rivers, oceans and other water level monitoring areas,etc.

Selection considerations

Provided to be some technical details:
1. measuring range
2. measurement medium (liquid specific name)
3. output signal
4. maximum temperature
5. Process connection
6.  Separation type or integration type
