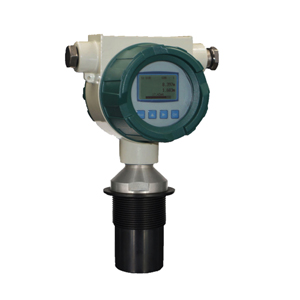

Model:JDYC-02
We can provide OEM service
E-mail: pearls@judongkj.cn
Product description：Ultrasonic level meter is a non-contact one and does not directly contact liquid, so the fault rate is low. The meter can be installed in several different ways, and the user can make meter calibration according to the Manual.
The meter’s all input and output lines must be with such protection functions as lightning protection and short circuit prevention. convenient to install and maintain, and is applicable to various fields of acid, alkali, salt, anticorrosion, and high temperature.
Download:JDYC Ultrasonic level meter Data
Product features
1.It is a method of measurement without contact with liquids
2.Measuring range 0 to1m and 0 to 20m.
3.On the spot display type and separation type.
4.Conventional type ,corrosion resistant and Explosion-proof type.
5.Small size, beautiful appearance, high cost performance
6.High precision, high stability, high reliability
Technical details
|
Measuring medium |
liquid,not easy to volatile liquids |
|
Measuring range |
0 to1m and 0 to 20m |
|
Blind area |
0.25~0.6m |
|
Output signal |
4-20mA ,0-5V,0-10V, 1-5V,etc. (Can be customized) |
|
Digital signal |
Rs485 and HART protocol |
|
Accuracy |
±0.3%F.S(Standard condition) |
|
Power Supply |
24Vdc(Two-wire and four wire ) ,220VAC |
|
Environmental Temp. |
-20℃~60℃ |
|
Working Temp. |
-20℃~90℃ |
|
Sensor material |
ABS engineering plastics and PTFE |
|
Connect Port |
Flange connection and Threaded connection |
|
Protection grade |
IP68 |
|
Pressure |
atmospheric pressure |
|
Electrical connection |
M20 x 1.5 (two units) |
|
Display |
English language displayLevel measurement, distance measurement, transmission value, echo state, alarm display, algorithm selection. |
Application
Selection considerations
